PP Liht-veksellüliti Lexo5 10AX 250VAC IP54, hall
Kood: LK72012
Print Button Trüki toote andmeleht
Küsi erihinda! € 2,00 /tk

Kogus:
Plus sign Minus sign
Pakend:  10  tk
Kaal:
0.1 kg
Maht:
0.0004 m3
Saadavus:
Laos


PP Liht-veksellüliti Lexo5 10AX 250VAC IP54, hall

Technical Data: 10AX 250VAC
Frequency: 50Hz
Colour: Grey
Main material: PC (Halogen free)
IP-Class: IP54
Max. Ambient temp.: 45°C
Fire hazard test: 650°C/850°C (IEC60695-2-1)
The product complies with the standard(s):

EN60669-1: 1999+A1:2002

The product is in conformity with the provisions of the following European directive(s):

LVD (2006/95/EC)

RoHS (2002/95/EC)

Certificate(s): CE, Semko, TÜV, CB
Technical Info:

Surface mounted - protected against corrosion.

Wiring diagram printed on the rear side.

Thermoplastic in the rocker and cover plate.

Screw terminals.

Flush wiring.

Screw terminal:

 Screw terminal

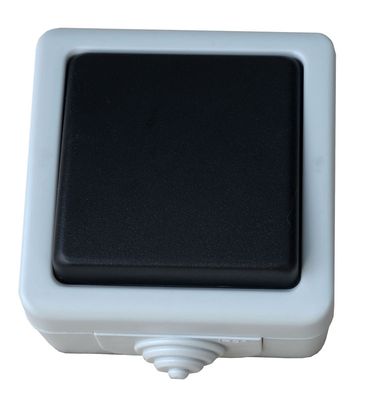

LK72012:

Pistikupesa

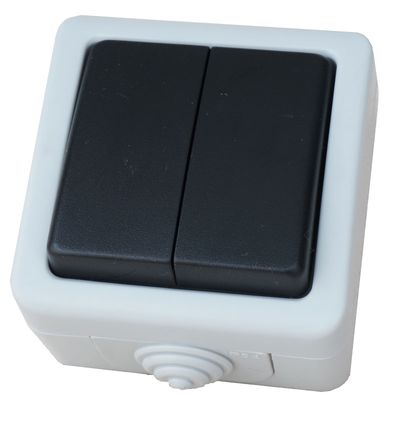

LK72015:

Grupilüliti


CE RoHS





Code Description Package
LK72012 SM Switch Lexo5 1-gang 2-way 10AX 250VAC IP54, grey 10/100
LK72015 SM Switch Lexo5 2-gang 1-way 10AX 250VAC IP54, grey 10/100
