Pilt on illustreeriv

Relee DRM570615, 4CO 5A 250VAC, jp 115VAC

Kood: 7760056085

€ 3,33 /tk
(€ 4,13 /tk KM-ga)

Tootja :

Saadavus:

Laos

Kaal:

0.0344 kg/tk

Maht:

0 m3/tk

Hulgipakendi kogus:

20tk

Relee DRM 4ül 5A 115VAC Weidmüller

Relay from the D-SERIES DRM:

2 or 4 CO contacts
Compact design
Wide range of coil voltages
Optional test button (AC red, DC blue)
Optional with integrated status display (AC red, DCgreen)and/or free-wheel diode

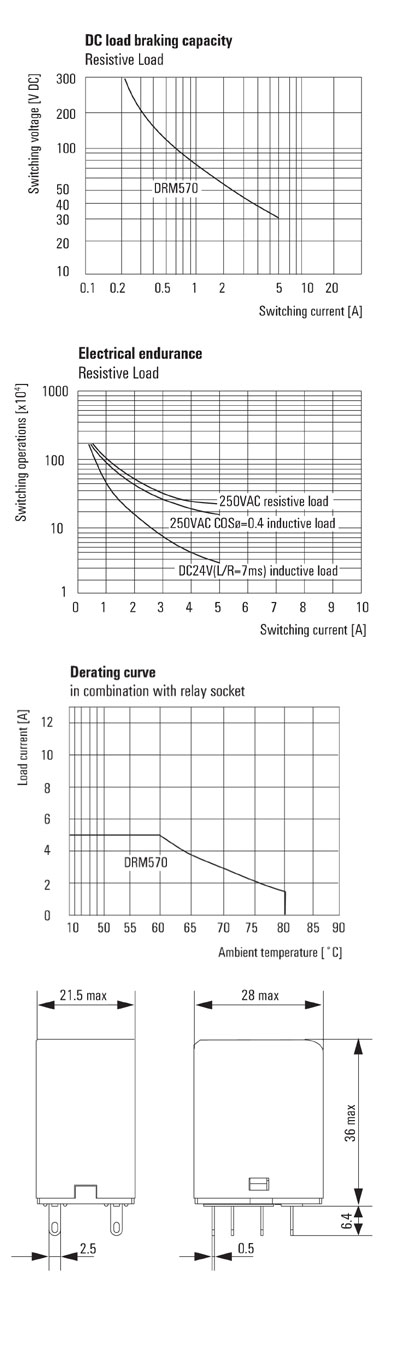

Technical data:
Dimensions and weights:	Width: 21.5 mm Height: 28 mm Depth: 36 mm Net weight: 36.2 g
Temperatures:
Humidity:	35...85 % rel. humidity, no condensation
Operating temperature:	-40°C...+55°C
Storage temperature:	-40°C...+70°C
Input:
Coil resistance:	4340 Ω ± 10 °
Rated control voltage:	115 V AC
Rated current AC:	12.6 mA (50 Hz), 10.8 mA (60 Hz)
Power rating:	1.0...1.2VA (60HZ)
Pull-inrop-out voltage, typ:	92 V / 34.5 V AC
Output:
Rated switching voltage:	250 V AC
Max. switching voltage, AC:	250 V
Continuous current:	5 A
AC switching capacity (resistive), max.:	1250 VA @ 250 V
DC switching capacity (resistive), max.:	120 W @ 24 V
Switch-on delay:	< 20 ms
Switch-off delay:	< 20 ms
Min. switching power:	12 V / 10 mA
Max. switching frequency at rated load:	0.1 Hz
Contact data:
No. of contacts:	4
Contact design:	CO contact
Contact material:	AgNi 90/10
Mechanical service life:	AC coil 10 x 10⁶ Switching cycles, DC coil 30 x 10⁶ Switching cycles
Contact resistance:	≤ 50 mΩ
General data:
Wire connection method:	Plug-in connection
Humidity:	35...85 % rel. humidity, no condensation
UL 94 flammability rating:	V-0
Insulation coordination:
Rated voltage:	250 V
Protection degree:	IP 20
Pollution severity:	3
Surge voltage category:	III
Connection data:
Wire connection method:	Plug-in connection
Classifications:
eClass 6.2:	27-37-16-01
