Pilt on illustreeriv
|
Mõõtetrafo E83, 5..50AAC, d12mm, väljund 4-20mA, LED, cv 10..40VDC, Carlo Gavazzi Kood:
E83-2050
Hind
€ 171,00
/tk
(€ 212,04 /tk KM-ga)
Tootja
:
|
Saadavus:
Laos
|
Kaal:
0.07 kg/tk
|
Maht:
0.0001 m3/tk
|
Hulgipakendi kogus:
10tk
|
|
|
|
Overview
Single-phase AC current measurement transformer with seven selectable current ranges and a 4..20mA output for connection to control relays or a PLC.
Product Information
|
Manufacturer
|
Carlo Gavazzi
|
|
Product type
|
Single-phase AC current measurement transformer
|
|
Mounting
|
DIN rail or surface mounting
|
|
Indication
|
Green power supply LED
|

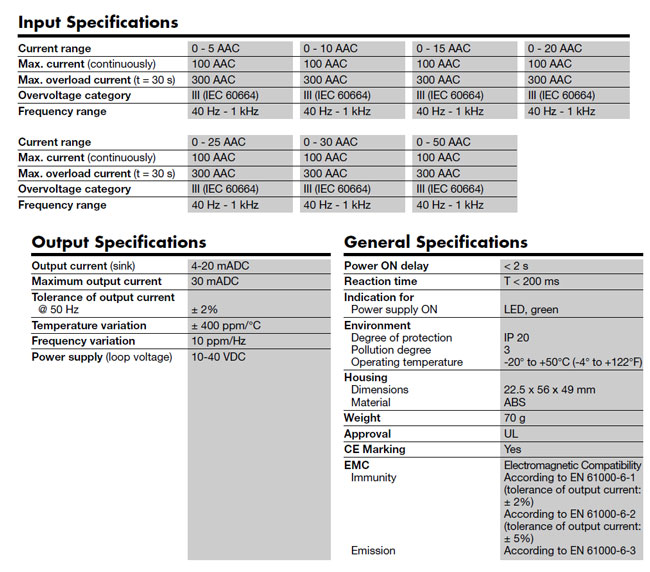

Electrical Specifications
|
Selectable current ranges
|
0..5AAC, 0..10AAC, 0..15AAC, 0..20AAC, 0..25AAC, 0..30AAC, 0..50AAC
|
|
Maximum continuous current
|
100AAC
|
|
Maximum overload current
|
300AAC@30s
|
|
Frequency range
|
40Hz..1kHz
|
|
Loop voltage
|
10..40VDC
|
|
Output current
|
4..20mADC
|
|
Maximum output current
|
30mADC
|
|
Output current tolerance
|
±2%@50Hz
|
Mechanical Specifications
|
Material
|
ABS
|
|
Conductor opening diameter
|
12mm
|
|
Width
|
22.5mm
|
|
Dimensions
|
22.5x56x49mm
|
|
Degree of protection
|
IP20
|
Environmental Conditions
|
Operating temperature
|
-20..50°C
|
|
|
|
|
