Temperature Sensor ThermasGard® ATM2-I, outdoor/wet room, PT1000, ranged: -20..150°C, output 4..20mV, UV-stabilised polyamid, M16, sv 24VAC/DC, IP65, S+S Regeltechnik, grey Code:
1101-1142-0009-900
Price
€106.00
/pc
(€129.32 /pc with VAT)
Manufacturer
:
|
Availability:
14 days
|
Weight:
0.156 kg/pc
|
|
|
|
|
|
Outside temperature transducer ATM-2-I, Pt1000, 15..35VDC, -20..+150°C, 4..20mA, IP65, S+S Regeltechnik
Calibratable outside temperature measuring transducer THERMASGARD ATM with eight switch able measuring ranges, internal , continuous output, terminal box enclosure made of impact-resistant plastic, enclosure sover with quick-locking screws, with or without optional display.
For the detection of outside temperatures, temperatures in wet room areas, e.g. for installation on outside walls, in cold storage building and greenhouses, in the industrial sector and in agriculture. Installation in outdoor areas preferably at the north side of a building or in a protected place. In the case of direct solar radiation, a sunshade protector should be used. These outdoor sensors are factory-calibrated. Adjustment / fine adjustment by the user is possible (zero point offset is adjustable).
|
| |
Technical data:
|
| Power supply: |
24 V AC / DC ±10% for output 0 - 10 V
15-36 V DC for output 4...20mA (depending on working resistance) |
|
Power consumption: |
< 1.0 VA / 24V DC
< 2.2 VA / 24 V AC |
|
Sensor: |
Pt1000, DIN EN 60751, class B,
sensor inside external stainless steel sensor tube, 1.4571, V4A |
|
Measuring ranges: |
multi-range switching/>
with 8 swichable measuring ranges,
operating range -30...+70°C
with manual zero point correction (± 10K) |
|
Output: |
0 - 10 V or 4....20mA |
|
Ambient temperature: |
measuring transducer -30...+70°C |
|

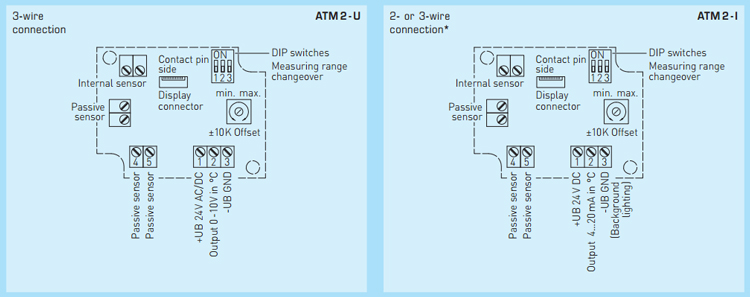

Connection type: |
2- or 3-wire connection |
|
process connection: |
by screws |
|
Enclosure: |
plastic, material polyamide, 30% glass-globe-reinforced,
with quick-locking screws, (slotted / Philips head combination),
colour traffic white (similar to RAL9016);
enclosure cover for display in transparent! |
|
Enclosure dimensions: |
72 x 64 x 37.8 mm (without display)
72 x 64 x 43.3 mm (with display) |
|
Cable gland: |
M 16x1.5, including strain relief, exchangeable, max inner diameter 10.4mm |
|
Electrical connection: |
0.14 - 1.5mm2 via terminal screws |
|
Humidity: |
<95% r.H., non-precipitating air |
|
Protection class: |
III (acording to EN 60 730) |
|
Protection type: |
IP 65 (according to EN 60 529) |
|
Standards: |
CE conformity, electromagnetic compatibility
according to EN 61326
according to EMC directive 2004 / 108 / EC |
|
Optional: |
Two-line display with illumination,
cutout approx. 36 x 15mm (wxh),
for displaying actual temperature |
|
|
|
|
|
|
|
