Digital DC Input Module Compact I/O, 16-ch., 24VDC, sinking/source, TS35/ panel mount Code:
1769-IQ16
Price (indicative)
€284.00
/pc
(€352.16 /pc with VAT)
Manufacturer
:
|
Availability:
21 days
|
Weight:
0.27 kg/pc
|
Volume:
0.0015 m3/pc
|
|
|
|
|
Digital DC I/O Module CompactLogix, 16 inputs 24VDC, sinking or sourcing, Allen-Bradley
The 1769 Compact I/O modules can be used with a CompactLogix controller, as well as for expansion I/O in a MicroLogix 1500 controller assembly or in an assembly with a 1769-ADN DeviceNet adapter module. Unless connected to a MicroLogix 1500 base, each bank of I/O modules must include its own power supply.

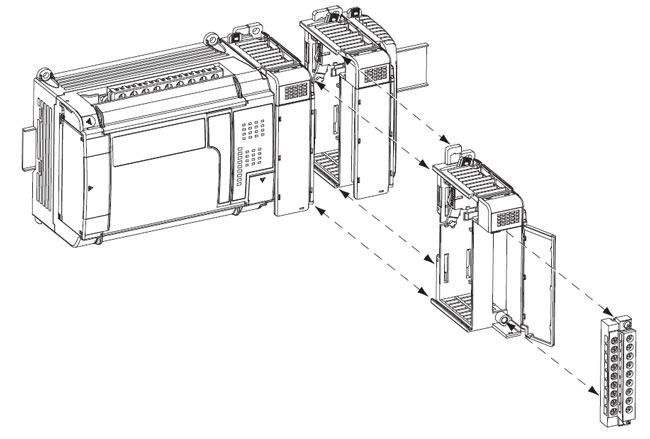

Install the I/O modules on a panel with two mounting screws or on a DIN rail. The modules mechanically lock together by means of a tongue-and-groove design and have an integrated communication bus that is connected from module to module by a moveable bus connector.
Each I/O module includes a built-in removable terminal block with finger-safe cover for connections to I/O sensors and actuators. The terminal block is behind a door at the front of the module. I/O wiring can be routed from beneath the module to the I/O terminals.
- Once the modules are locked together, the system becomes a rugged assembly.
- Upper and lower tongue-and-groove slots guide the module during installation and secure the module within the system.
- Removable terminal blocks help ease the wiring task.
- Self-lifting, field-wire pressure plates cut installation time.
- The patented bus connector with locking function enables reliable module and system communication.
- A color bar is provided on the front of the module.
- Digital and field circuits are optically isolated.
|
 |
|
|
See more detailed information from Downloadable files.
|
|
|
