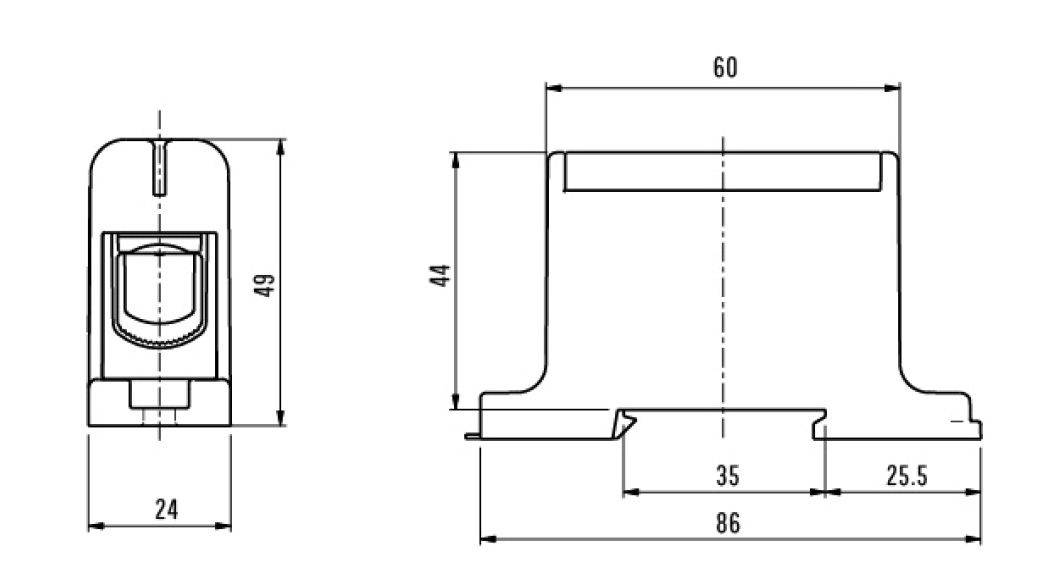

Image is illustrative
|
Universal Terminal Block Al/Cu UK95/1A, 1P (2holes) 16-95mm² 220/245A 1000VAC/ 1500VDC, Hex6 12N 6..25mm²/ 22Nm 35..95mm², TS35/ panel mount, grey Code:
1914112
Price
€4.07
/pc
(€5.05 /pc with VAT)
Manufacturer
:
|
Availability:
In Stock
|
Weight:
0.1021 kg/pc
|
Volume:
0.0002 m3/pc
|
Wholesale qty:
8pc
|
|
|
|
Terminal Block Al/Cu 16-95mm², grey
 |
|
| Name: |
Terminal Block Al/Cu 16-95mm², grey |
| Working temperature (ºC): |
max 80ºC |
| Housing: |
polyamide |
| Fastening: |
DIN-rail |
| Screw head: |
hexagon
|
| Colour: |
grey |
| Wire mm²: |
16-95 mm² |
| Nominal Insulation Voltage V: |
690 V |
| Screw head size: |
5 mm |
| Nominal Rated Current A: |
Cu 245 A, Al 220 A |
| Number of poles: |
1 |
| Standard: |
EN 61238-1, EN 60947-7-1 |
| Nominal Tightening Torque Nm: |
12 Nm (6-25 mm2)
22 Nm (35-95 mm2) |
|
|
|
