Image is illustrative
|
4742455002296 « LED toru T8/1200 18W 2350lm 4500K pööratav-ots, opaal, Oritex Code:
4742455002272
€12.90
/pc
(€16.00 /pc with VAT)
Manufacturer
:
|
Availability:
In Stock
|
Weight:
0.552 kg/pc
|
Volume:
0.0026 m3/pc
|
Wholesale qty:
25pc
|
|
|
|

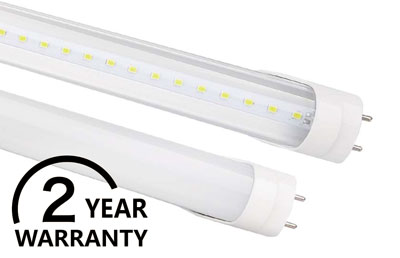

LED Tube T8/1200 18W 2160lm 4500K rotatable-end, single end powered, frosted, Oritex

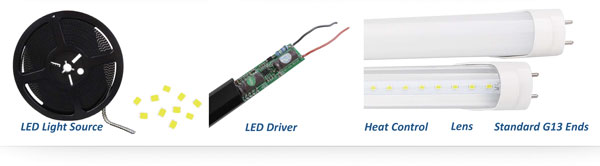

LED Light source:
- Professional encapsulated SMD2835 with high-quality LED chip makes the LED Tube Light source obtaining
excellent protection of optical attenuation and heat conduction ratio.
LED Driver:
- Utilizing high quality constant-current LED driver with great luminaire stability, lifespan& Optimal Performance Status.
Heat Control:
Heat Conduction
- Use of the good thermal grease combining PCB and aluminium radiator closely, keeps every LED Tube Light obtaining
optimal effects of heat dissipation.
Heat Dissipation
- Light attenuation of LEDs under safe control with adequate heat sinking area.
Lens:
- High transmission rate Lens with uniform light, clear and frosted optional.
Standard G13 Ends
- Stationary and rotatable ends could be optional according to various applications.
|
|
 |
Benefits:
LED 18W replacement for FL 36W
|
Electrical Specifications:
|
| Nominal Wattage: |
22W |
| LED Type, Quantity:: |
SMD2835, 132pcs |
| Nominal Voltage: |
AC 100-240V, 50/60Hz |
| Optimal Operating Temperature: |
-40 °C to +50 °C |
| Power Factor (PF): |
>0.9 |
| Driver Efficiency: |
85% |

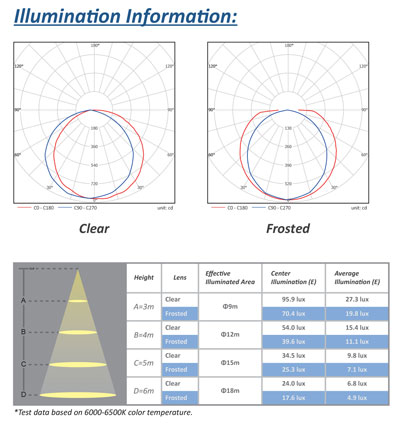

Photometric Spetcifications:
|
| Lumen Output: |
†c - clear, f - frosted
††Lumen tolerance +/- 5% |
| 3000-4500K: |
1980 lm - c, 1760 lm - f |
| 5000-6500K: |
2160 lm - c, 1980 lm - f |
| CRI: |
Ra >= 80 |
| CCT: |
 |
Mechanical Specifications:
|
| IP Rating: |
IP 20 |
| Lifetime: |
50 000 hours |
| Heat Radiator: |
Anodized Aluminum |
| Lens: |
Clear /Frosted PC |

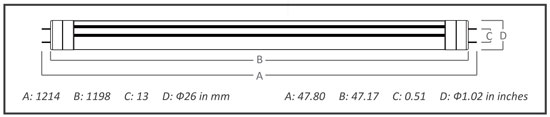

| Fixture Dimension: |
1214 x26 x32 mm/
47.80 x1.02 x1.26 inches |
| Fixture Weight: |
0.41 kg /0.904 lbs |
Packing Information:
|
| Packing Type: |
20 unit/ctn. |
| Packing Dimension: |
1230 x170 x145 mm/
48.43 x6.69 x5.71 inches |
| Packing Weight: |
10.2 kg (22.5 lbs) |
|
