600VPR-310/520| Voltage Protection Relay, 3Ø-3W, phase sequence/failure ^over/under voltage, range 154..520VAC, trip delay 0.2..10sec, 1CO (SPDT) 5A 250VAC, TS35 Code:
600VPR-310/520-CU
Price
€39.40
/pc
(€48.86 /pc with VAT)
Manufacturer
:
|
Availability:
14 days
|
Weight:
0.15 kg/pc
|
|
|
|
|
|
Overview
Three-phase voltage protection relay for monitoring under voltage, over voltage, phase sequence, phase failure ^ phase asymmetry.
Features
|
Monitoring
|
Under voltage, over voltage, phase sequence, phase failure ^ phase asymmetry
|
|

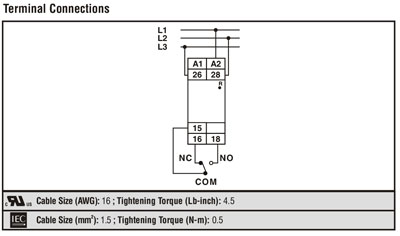

Electrical connection
|
3-phase, 3-wire
|
|
Mounting
|
DIN rail
|
|
Certification
|
CE, RoHS
|
Technical Data
|
Supply voltage
|
310..520VAC L-L
|
|
Operating voltage
|
154..500VAC L-L
|
|

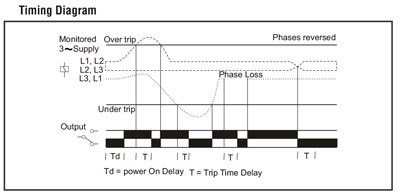

Trip time delay
|
0.2..10s
|
|
Power-on delay
|
400ms
|
|
Trip voltage accuracy
|
±0.5% of full scale
|
|
Trip time accuracy
|
±5% of full scale
|
|
Output contact
|
1 C/O SPDT
|
|
NC output rating
|
3A 250VAC
|
|
NO output rating
|
5A 250VAC
|
|

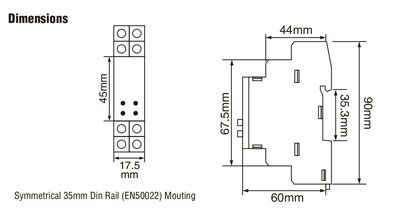

Width
|
17.5mm
|
|
|
|
|
