Image is illustrative
|
Fanfilter, 240VAC, 230m³/h, ■250x250/□224x224, IP54 Code:
FK5525.230
Price
€103.60
/pc
(€128.46 /pc with VAT)
|
Availability:
In Stock
|
Weight:
1.875 kg/pc
|
Volume:
0.011 m3/pc
|
|
|
|
|
Filter fan units for enclosure cooling and heat dissipation.
Filtered ambient air is guided into the enclosure, expelling heated internal air.
Prevents localized heat build-up and protects electronic components.
Features
Minimal mounting depth.
High air volume.
Functional design.
Time-saving installation.
Weather and UV resistant.
Specification
| Fan and Filter |
Fan and Filter |
Exit Filter |
Power characteristic |
 |
 |
 |
 |
| Type |
M.U |
FK5525.300 |
FK5525.230 |
FK5525.115 |
FK5525.024 |
| Voltage / Phase / Frequency |
V-ph-Hz |
|
230-1-50/60 |
115-1-50/60 |
24DC |

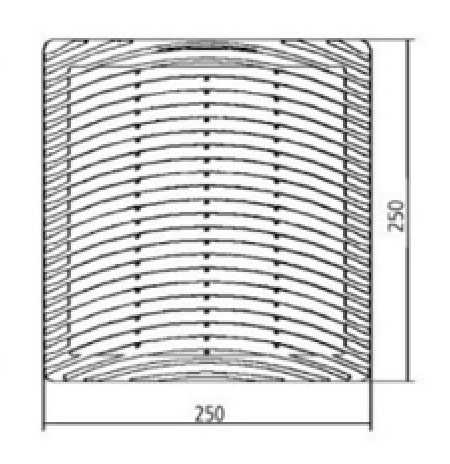

| Dimensions (H×W×D) |
mm |
250x250x25 |
250x250x109 |
250x250x103 |
250x250x109 |
| Power / Current |
W/A |
|
46–59 / 0.28–0.33 |
42–47 / 0.50 |
15 / 0.40 |
| Temperature limits |
°C |
|
-10..+70 |
-10..+70 |
-20..+70 |
| Protection degree |
IP |
55 |
55 |
55 |
55 |
| Noise level |
dB(A) |
|
52 |
52 |
52 |

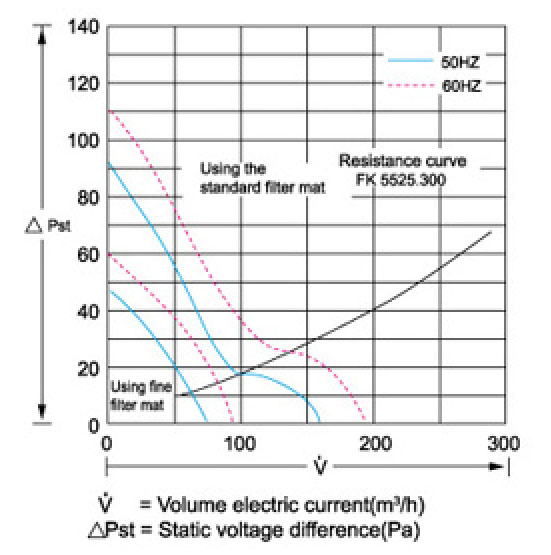

| Air flow |
m³/h |
|
230 / 265 |
230 / 265 |
230 / 265 |
| Air flow (+FK5524.300) |
m³/h |
|
170 / 230 |
170 / 230 |
170 / 230 |

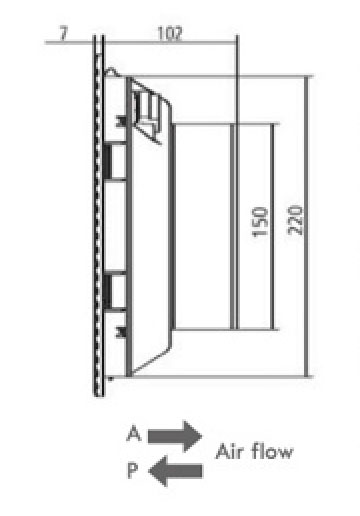

| Air flow direction |
|
|
A/P |
A/P |
A/P |
|
|
|
