Image is illustrative
|
Modular Contactor C1-63, 4NO 13/40kW 25/63A 400VAC, cv 24VAC, 6..35mm² Code:
SGC1-63-40-24
€21.80
/pc
(€27.03 /pc with VAT)
Manufacturer
:
|
Availability:
In Stock
|
Weight:
0.36 kg/pc
|
Volume:
0.0003 m3/pc
|
Wholesale qty:
4pc
|
|
|
|
Modular Contactor C1-63, 4no 40kW 63A 400VAC, cv 24VAC

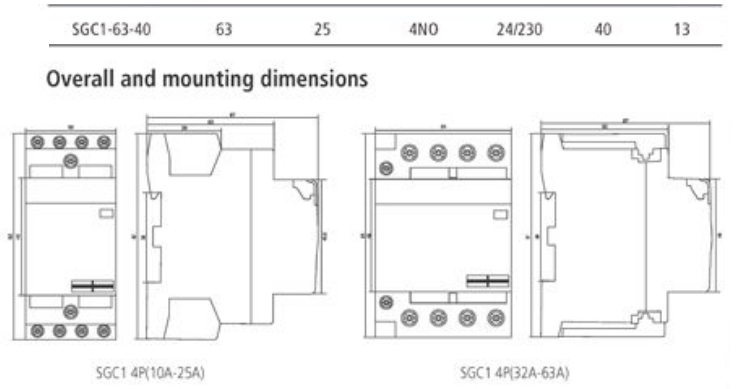

Technical data:
|
| Maximum power: |
AC1 220/230VAC; 20A 4,5KW (SGC1-20)
AC1 220/230VAC; 25A 16KW (SGC1-25)
AC1 380/400VAC; 63A 40KW (SGC1-63)
AC1 380/400VAC; 27A 15KW (SGC1-63)
AC1 380/400VAC; 27A 4KW (SGC1-25)
|
| Main contacts terminal capacity: |
1,5 - 50mm2 (SGC1-20/SGC1-25)
2,5-25mm2 (SGC1-63) |
| Coil contact A1,A2 terminal capacity: |
0.75-2.5mm2 |
| Electric endurance: |
≥ 3x104 |
| Mechanical endurance: |
≥ 3x105 |
| Protection degree: |
IP20 |
| Terminal tightening torque (N+m): |
0.8 - 2.4 |
| Ambient temperature (°C): |
-25 ~ +40, max. 95% humidity |
| Storage temperature (°C): |
-40 ~ +75°C |
| Connection Capacity (mm2): |
1-25 |
|
|
File description
|
File type
|
Download link
|
|
Declaration of Conformity
|
PDF
|
Download link
|
|
|
|
|
|
