Image is illustrative
|
VPRA2M| Voltage Protection Relay, 1Ø-2W/ 3Ø-4W, over/under voltage ^phase asymmetry ^failure ^sequence ^neutral loss, range 127..288VAC, 2CO (DPDT) 5A 250VAC/28VDC, cv 127..288VAC, TS35 Code:
VPRA2M-CU
Price
€35.70
/pc
(€44.27 /pc with VAT)
Manufacturer
:
|
Availability:
In Stock
|
Weight:
0.1575 kg/pc
|
Volume:
0.0002 m3/pc
|
|
|
|
|
Overview
Analog voltage protection relay for single-phase or three-phase electrical systems. The relay monitors supply voltage conditions, phase conditions ^ sequence faults.
Features
|
System
|
Single-phase or three-phase
|
|
Monitoring
|
Under voltage, over voltage, phase asymmetry, phase failure, phase sequence
|
|
Display
|
LED indication
|
|
Certification
|
CE, RoHS
|

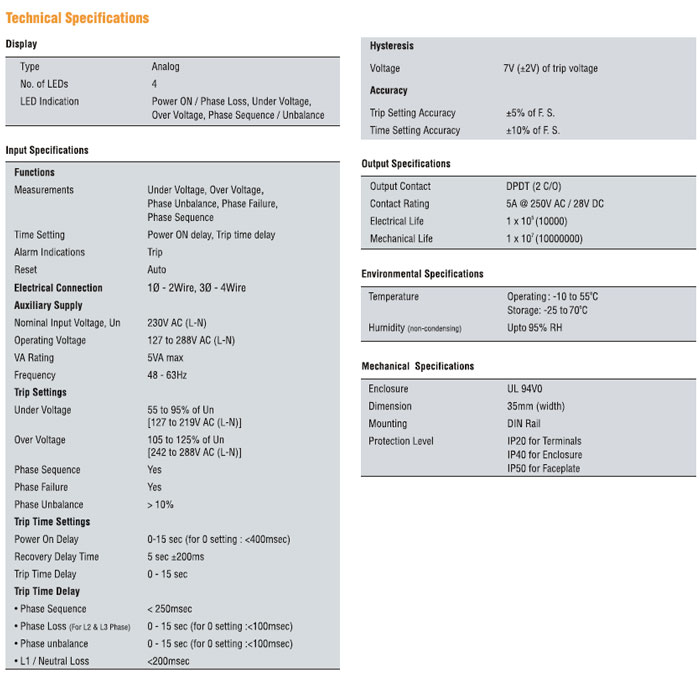

Electrical Specifications
|
Operating voltage
|
127..288VAC L-N
|
|
Electrical connection
|
1Ø-2W, 3Ø-4W
|
|
Output contact
|
2 C/O DPDT
|
|
Output rating
|
5A 250VAC/ 28VDC
|
Timing ^ Accuracy
|
Trip time delay
|
0..15s
|
|
Power ON delay
|
0..15s
|
|
Recovery time delay
|
5s ±200ms
|
|
Trip setting accuracy
|
±5% of set value
|
|
Time setting accuracy
|
±10% of full scale
|

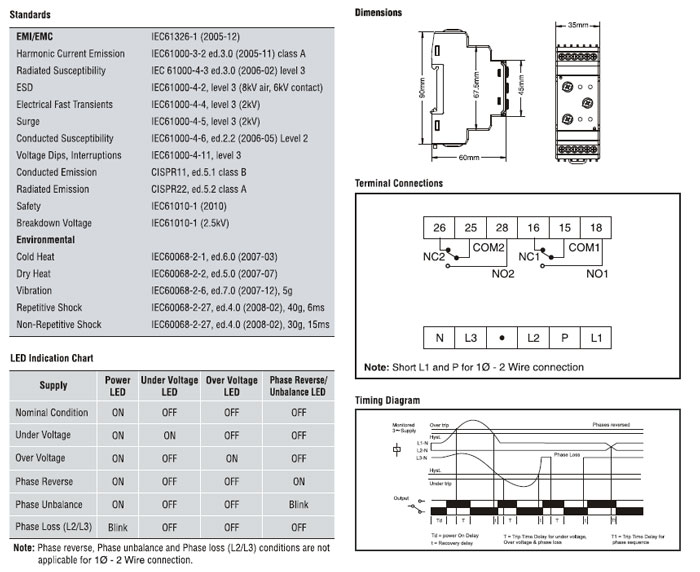

Installation
|
Width
|
35mm
|
|
Mounting
|
DIN rail
|
|
|
|
|
